K Type multi-storey house is a cost-effective prefab house, mainly designed for construction site accommodation and office. It is widely used in Asian countries, including China, India, Vietnam, Thailand, Philippines, Indonesia, etc.
Features & Advantages:
1 . Module: Width and length can be extended by times of 1820mm modular. Flexible design.
2 . Fast Installation: Components are standard and fabricated in factory, less site works, quick and easy installation. Eight skilled workers can finish 100 m2 in 8 hours.
3 . Reusable: Structures are connected by bolts & nuts, panels plug into channels, house can be knocked down for many times
4 . Multi-storey: Can be one, two and three storey.
5 . Loading: One 40HQ container can load about 250m2 without raised floor , or 200m2 with elevated floor.
6 . Parameters: Wind load: 0.45KN/m2, Anti-seismic:7, Service life:5~10years.
Disassemble Availability
All structures include raised steel flooring system are connected by bolts & nuts, panels flexible plug into channels, the house can be assemble and disassemble for 5-10 times.
When one project job is finished, house can be relocated to other site.
| No. | Category | Name | Specification |
| 1 | Specification | length | NM+160(N=4,5,6... M is modular, 1M=1820mm) |
| 2 | Width | NM+160(N=2,3,4,M is modular,1M=1820mm) | |
| 3 | Wall Height | 5720mm | |
| 4 | Clear Height | Ground floor:2425mm First floor:2685mm | |
| 6 | StandardAccessory | Wall Board | 50mm thick EPS sandwich panel, steel sheet onboth sides is 0.25mm, the density of EPS is10KG/M3.Outside wall panel: with steel strip, for convenientinstallation between panels.Partition wall panel: without steel strip, because thewall connection is tongue and groove. |
| 7 | Roof Board | 50mm thick corrugated EPS sandwich panel. Steelsheet on exterior surface is 0.25mm in thickness,oninterior surface is 0.25mm in thickness. The densityof EPS is 10KG/M3. | |
| 8 | Door | SIP with steel frame which was premade in CDPHplant, single door with dimensions of 960*2028mm,furnished with a cylinder lock with 3keys. The steelsheet on both sides is 0.3mm thick and theinsulation is 50mm thick EPS foam. | |
| 9 | Window | PVC sliding window, 1735*932mm/1735*482mm.The window frame proximate matter is 80mm(width) series, two bays sliding, with 4mm thickglass, supplied with mosquito-proof net and doorlock. | |
| 10 | Base Beam | C80*40*13.5*1.8mm, hot dip galvanized structure. | |
| 11 | Column | Double C80 style steel, C80*40*13.5*1.8mm,Galvanized structure | |
| 12 | Floor Beam | Parallel truss, C80*40*13.5*1.8mm, galvanizedstructure. | |
| 13 | Floor Purlin | Gable truss, C60*40*9*1.4mm, hot galvanizedstructure. | |
| 14 | Roof Beam | Gable truss, C60*40*9*1.4mm, galvanizedstructure. | |
| 15 | Roof Purlin | Gable truss, C60*40*9*1.4mm, hot galvanizedstructure. | |
| 16 | Inclined Bracing | round steel, 7.2,galvanized | |
| 17 | Stair | Steel stair, 1100mm wide. | |
| 18 | Tread | Sliding-proof steel board 2.5mm in thickness,galvanized structure | |
| 19 | Walkway Bracket | C80*40*13.5*1.8mm, galvanized structure | |
| 20 | Awning Bracket | C60*40*9*1.4mm, galvanized structure | |
| 21 | Floor Stab | 15mm plywood | |
| 22 | Option | False Ceiling | Waterproof gypsum board or others |
| 23 | Decorative Floor | PVC, laminated wood floor or ceramic tile(forground floor only) | |
| 24 | Drainage System | Provided plan, design and construction solution | |
| 25 | Electric System | Provided plan, design and construction solution | |
| 26 | TechnicalParameter | Roof Bearing Load | 50kg/㎡ |
| 27 | Floor Bearing Load | 200kg/㎡ | |
| 28 | Wind Resistance: | 100KM/H | |
| 29 | Fire-proof | The EPS contains fire retardant. B2 grade | |
| 30 | ResistantTemperature | -10℃ to 40℃ | |
| 31 | The Resistant 7 degree seismic intensityEarthquake Grade | ||

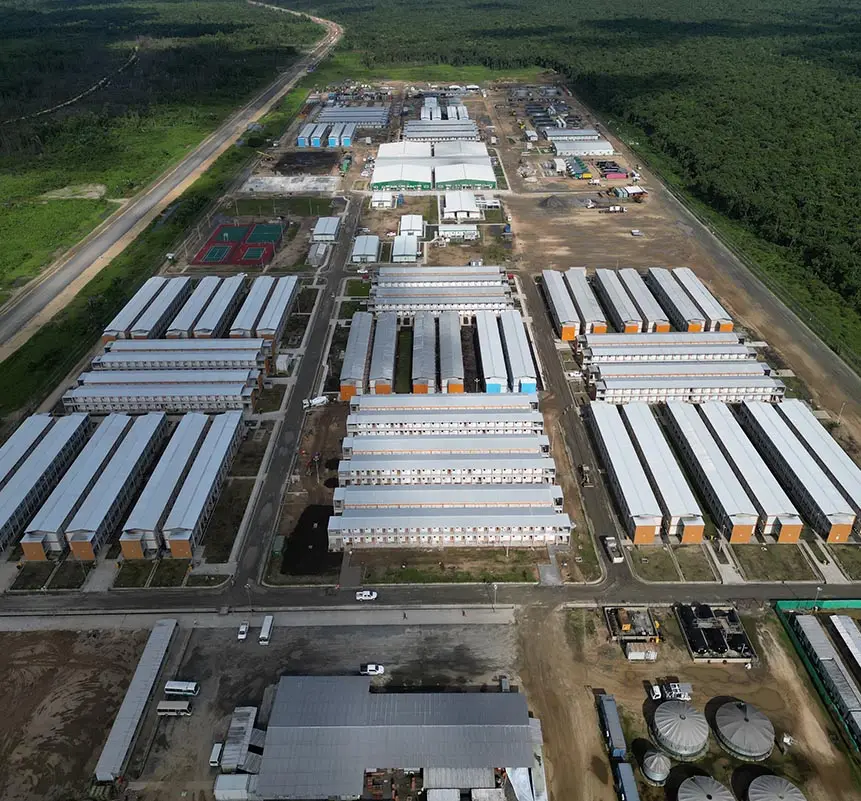

CDPH manufactures and sells various types of modular house, Prefab house and Villa house. Wide range of products ensures us to provide suitable solution for each engineering camp.
