A-Frame Triangle Houses Built for Outdoor Enthusiasts

Product Description


Profile
L*H*W(mm)4500*6300*5250mm
Roof TypePitched roof with natural drainage system.
Number of FloorsTwo floor
Area35 (First floor 28, second floor 7)
ParametersDesigning Life-span20years
Foor Loading2.0KN/
Roof Loading0.5KN/
Wind Loading0.45KN/
Snow Loading0.5KN/
Roof FrameRoof Main BeamSize: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B
Roof purlinSize: 40*80*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B
Ground Floor FrameFloor Main BeamSize: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B
Floor PurlinSize: 40*80*1.5mm, galvanized square steel pipe, t=1.5mm, steel profile Q235B
Second Floor FrameFloor Main BeamSize: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B
Floor PurlinSize: 40*80*1.5mm, galvanized square steel pipe, t=1.5mm, steel profile Q235B
Wall FrameWall ColumnSize: 100*100*3mm, galvanized square steel pipe, t=3mm, steel profile Q235B
Wall PurlinSize: 50*100*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B
Roof (Wall) DecorationMetal Carved Board 50mm thickness(including insulation), brick gray color, standard brick grain.
Moisture-proof Breathing Paper0.5mm thickness
OSB Board (Internal)9mm thickness,E1 level environmental protection
Bamboo and Wood Fiber Board (Interior Finish)9mm thickness with yellow wood grain color,E1 level environmental protection
Ground Floor DecorationFloor Moisture-proof PadPearl cotton double core aluminum film moisture-proof film
Cement Board18mm thickness
PVC Carpet2mm thickness
Second Floor DecorationCement Board18mm thickness
PVC Carpet2mm thickness
Internal PartitionStructureSize: 50*50*1.5mm, galvanized square steel pipe, t=1.5mm, 30*50*1mm, galvanized square steel pipe, t=1mm(purlin)
Surface Decoration(Two Sides)9mmOSB board+9mm thickness bamboo and wood fiber board (yellow wood grain color)
Front WallBroken Bridge Aluminum Panoramic Glass Doors and WindowsAluminum alloy frame,5+12+5 coated tempered glass,door:1000*2200 with mosquito-proof net; Sliding window: 1000*1300 with screen window
Back WallComplex Wall Steel keel+OSB board,external metal carved board (50mm thickness, brick gray, standard brick pattern),Interior hanging bamboo fiberboard (9mm thickness, yellow wood grain color)
Aluminum alloy frame,upper hanging exterior window:650*1100, 600*600mm with screen window
Interior DecorationBathroomWhite toilet (with tank), shower base (with shower curtain), shower mixer (black)
BasinSize: 700mm*600mm, ceramic washbasin, with mirror cabinet
Hardware Accessoriestowel rack,paper holder, soap holder
CupboardSize: 1250mm*600mm, marble countertop, with stainless steel wash basin
LadderDouble run steel stairs
Second Floor Railingsquare steel pipe, t=1mm,grey white appearance
Company Profile

DM_20240529160156_001

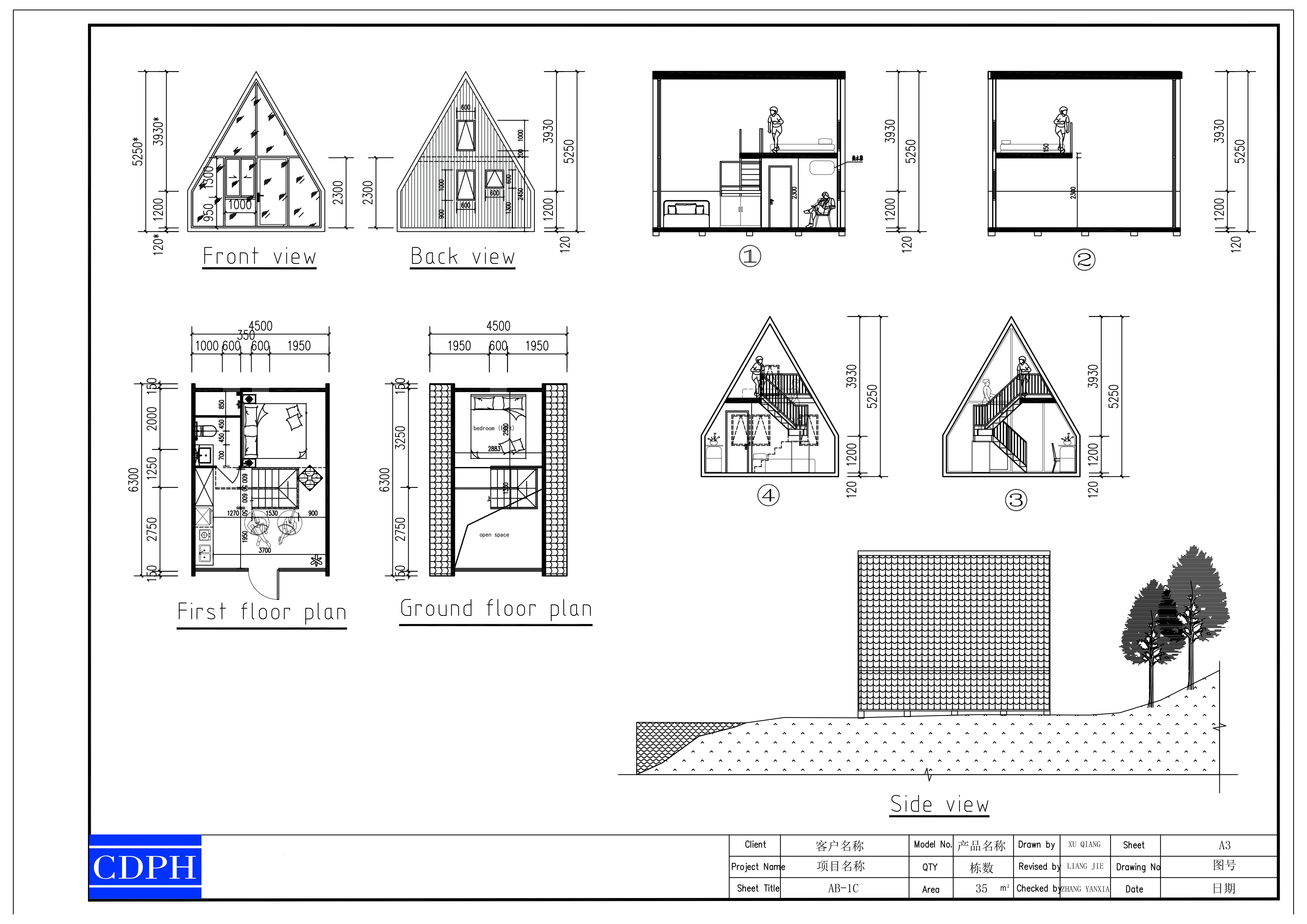

Design Drawings
