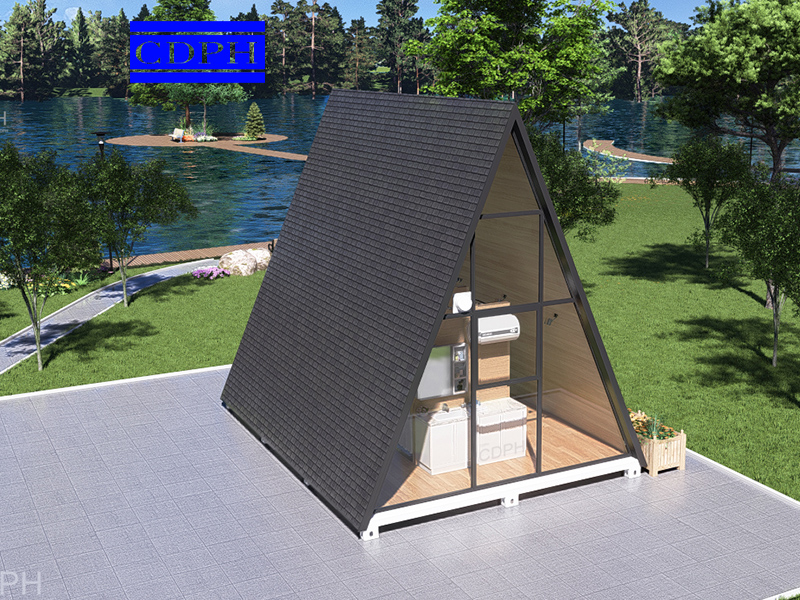

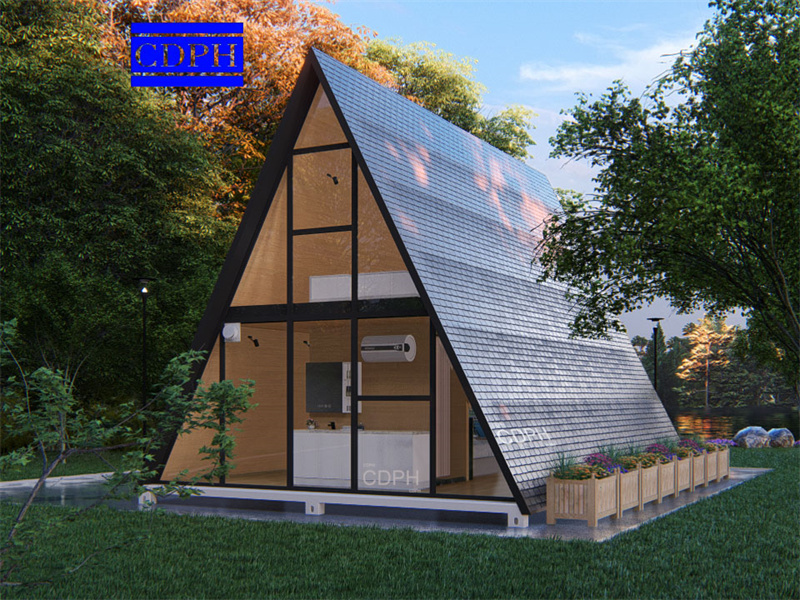

Boutique Loft Style Two Story Modular A Frame Steel Camper Bungalow Triangle Kit Houses for Hotel Home

Product Description

ProfileL*H*W(mm)4500*6300*5500mm
Roof TypePitched roof with natural drainage system.
Number of FloorsSingle floor
Area28.35㎡
ParametersDesigning Life-span20years
Foor Loading2.0KN/㎡
Roof Loading0.5KN/㎡
Wind Loading0.45KN/㎡
Snow Loading0.5KN/㎡
Roof FrameRoof Main BeamSize: 100*100*2mm, galvanized square steel pipe, t=2.0mm, steel profile Q235B
Roof PurlinSize: 50*100*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B
Floor FrameFloor Main BeamSize: 100*100*2mm, galvanized square steel pipe, t=2.0mm, steel profile Q235B
Floor PurlinSize: 50*100*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B
Roof DecorationMetal Carved Board (External)50mm thickness(including insulation), brick gray color, standard brick grain.
Moisture-proof Breathing Paper0.5mm thickness
OSB Board (Internal)9mm thickness,E1 level environmental protection
Bamboo and Wood Fiber Board (Interior Finish)9mm thickness with yellow wood grain color,E1 level environmental protection
Floor DecorationFloor Moisture-proof PadPearl cotton double core aluminum film moisture-proof film
Cement Board18mm thickness
PVC Carpet2mm thickness
Internal PartitionStructureMain structure:galvanized square steel pipe 50*50*1.5mm, galvanized square steel pipe 50*30*1mm
Surface Decoration(Two Sides)9mm thickness OSB Board and 9mm thickness bamboo wood fiber board(yellow wood grain color)
Aluminum Alloy Doors and Windows(Front and Rear)Size(mm)Door: Width X Height=1000*2200mm with screen door. Window: 1000*1100mm with mosquito-proof net
MaterialAluminum alloy frame
GlassTempered double glass 4+9+4mm
Interior DecorationExhaust FanFixed on the rear glass
BathroomWhite toilet, frosted glass partition
Shower roomShower base (with shower curtain), shower mixer (black)
Hardware AccessoriesTowel rack,paper holder, soap holder
Wash Basin Cabinet Integrated CountertopSize: 1600*500mm, cabinet with mirror, white cabinet, marble countertop
Company Profile

DM_20240529160156_001

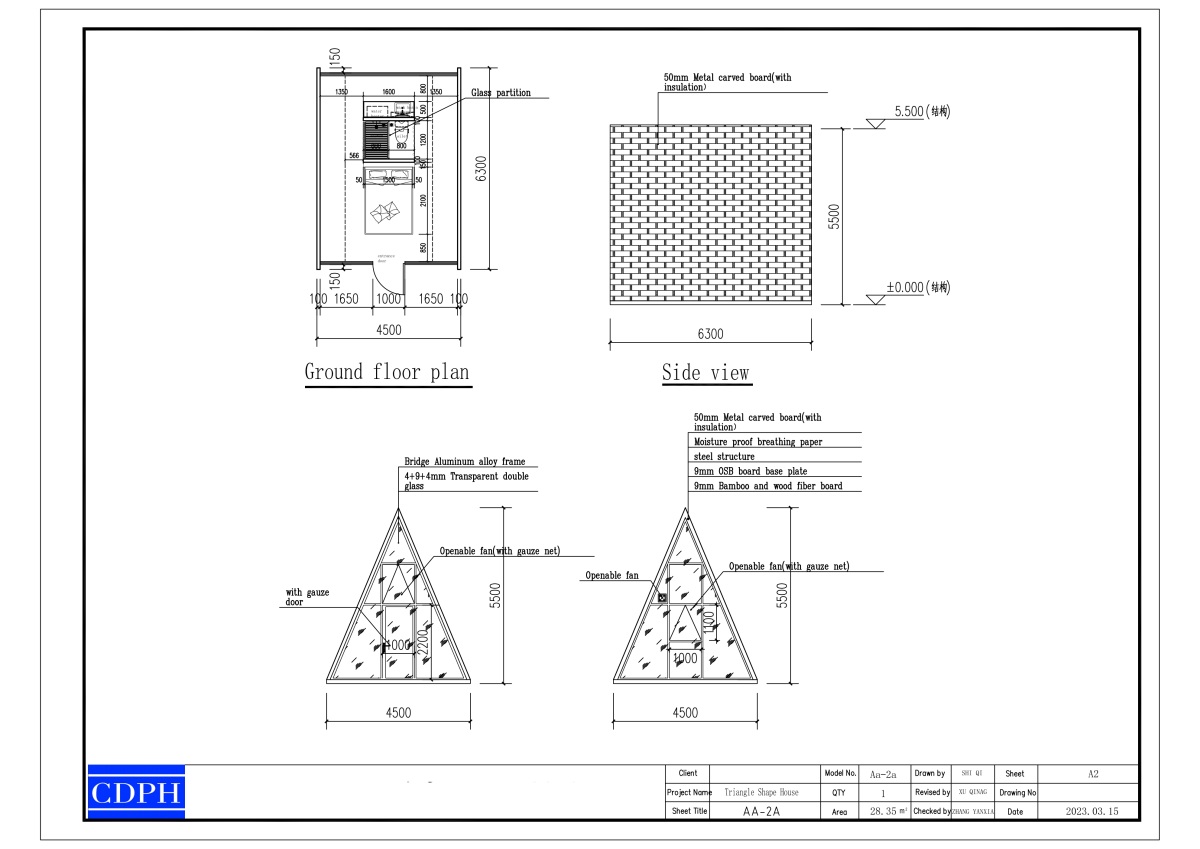

Design Drawings

11


Certification

DM_20240529160201_001
