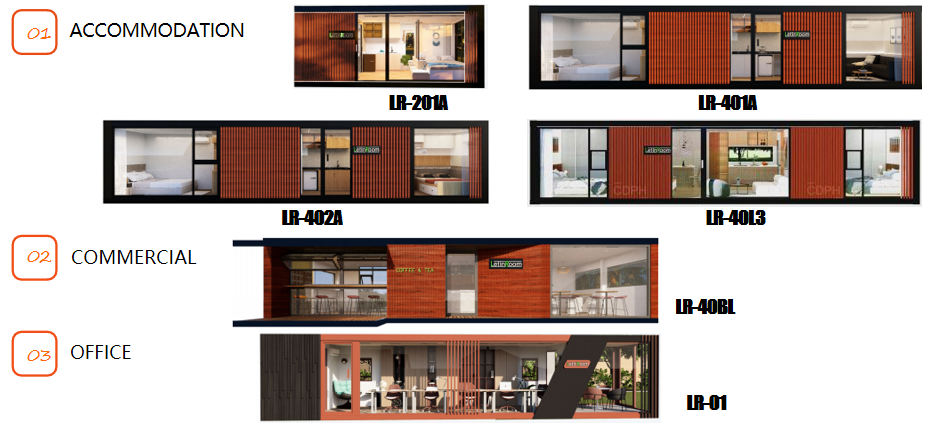

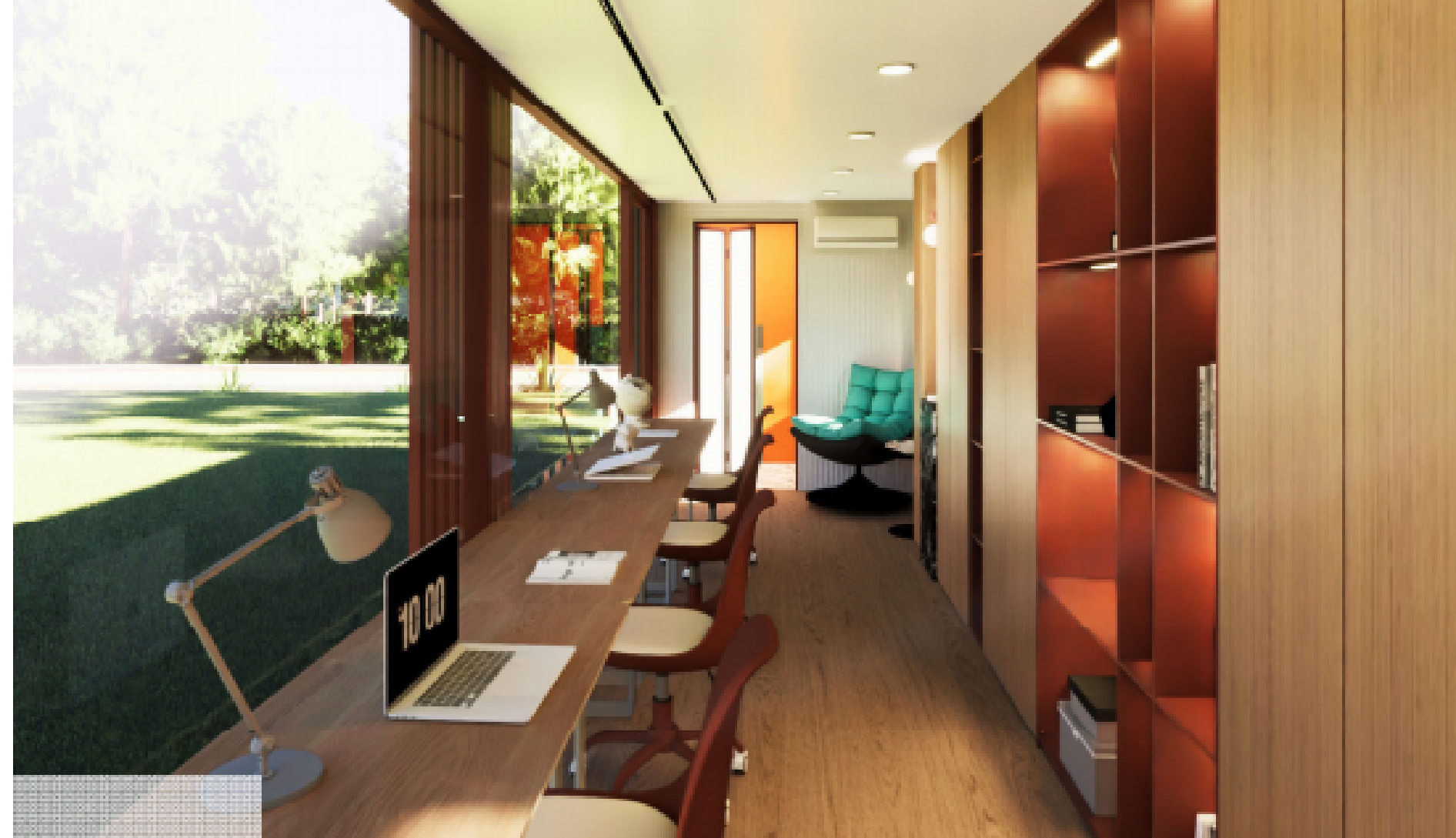

Focusing on high-end demands for residential, commercial, and office spaces, we launch theLR Series. This product strikes a balance between innovation, practicality, and user experi-ence, offering diversified spatial layouts to meet the needs of different scenarios. It features aflexible design with modularity and personalization, adapting to various usage requirements. Application areas: cultural tourism, backyard offices, home studios,

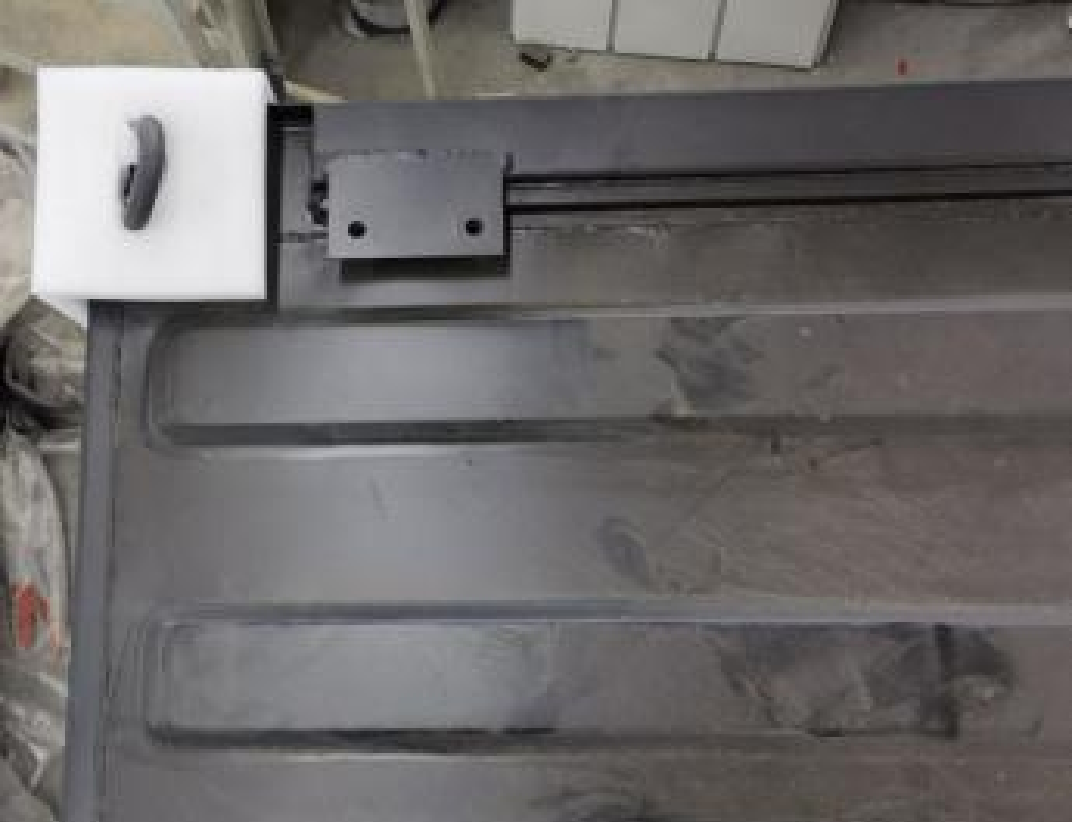

All welding points have been meticulously polished to achieve a smooth, uniform surface, then thoroughly cleaned and treated with a high-performance anti-corrosion primer before receiving the decorative paint.
This comprehensive refinishing process significantly enhances rust prevention capabilities and optimizes long-term water resistance , ensuring durable protection even in harsh environmental conditions.

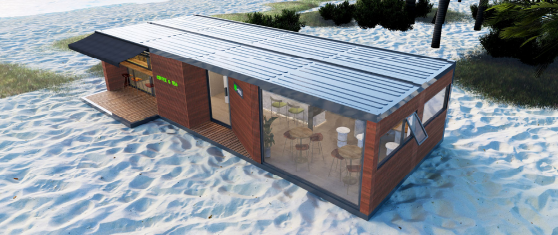

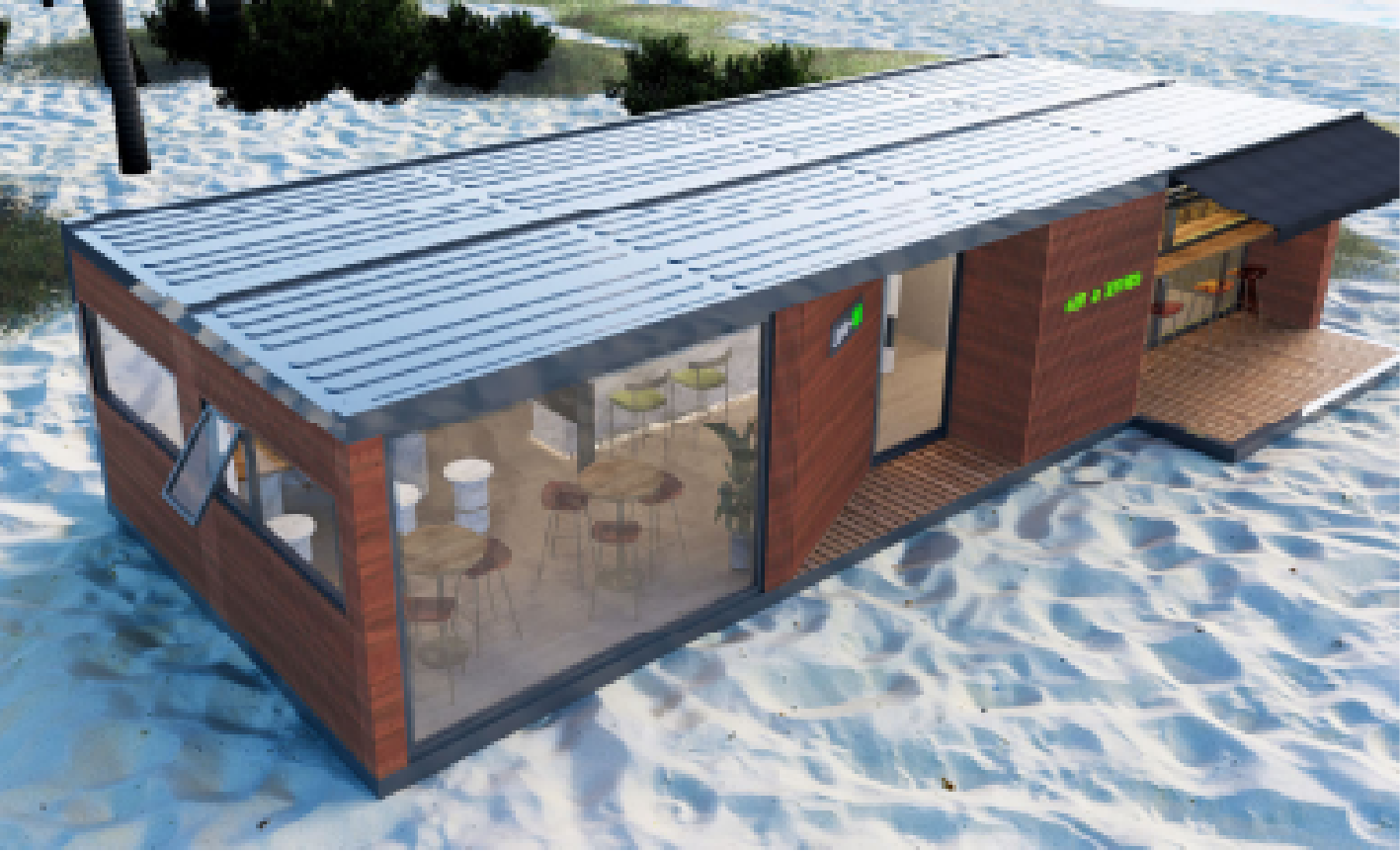

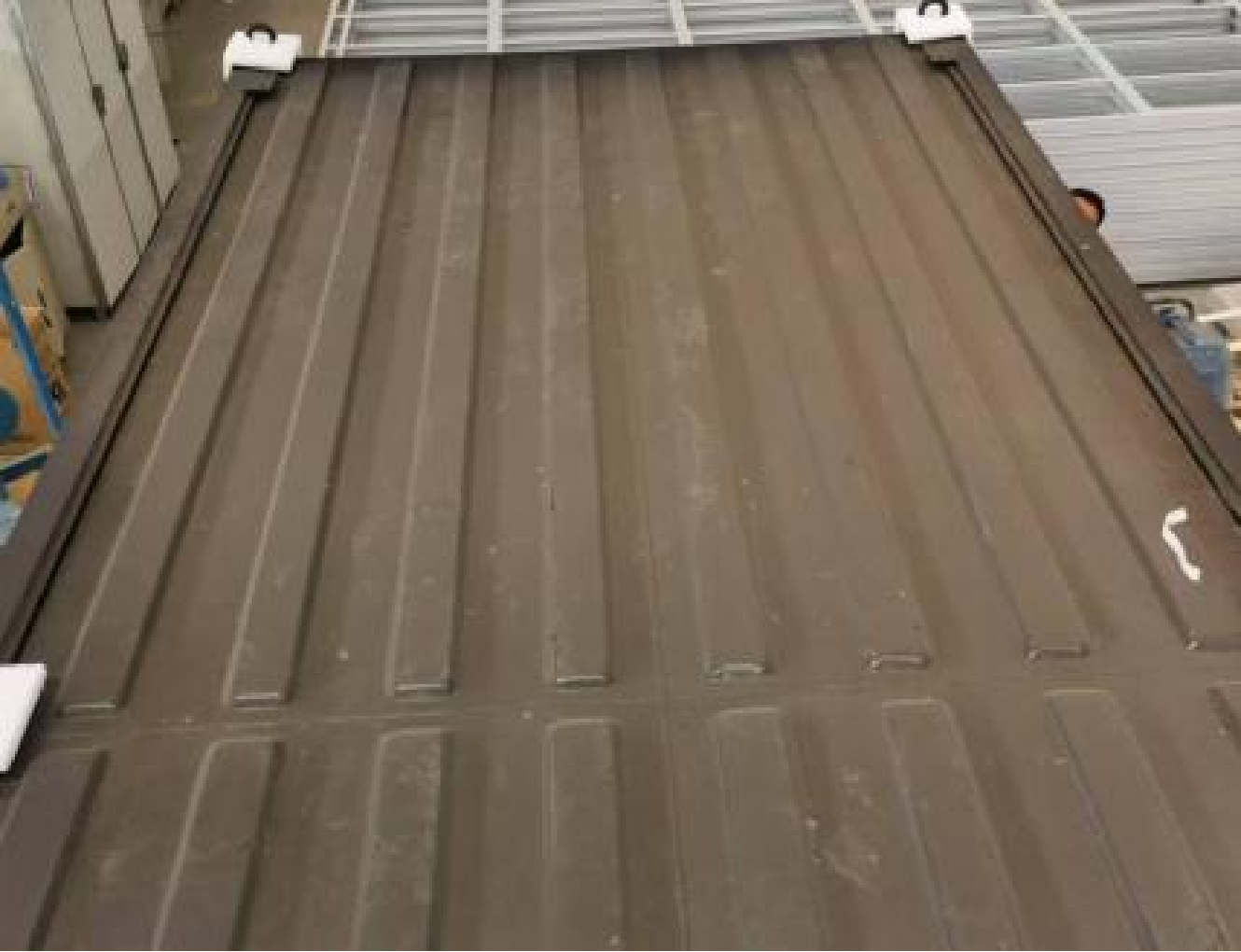

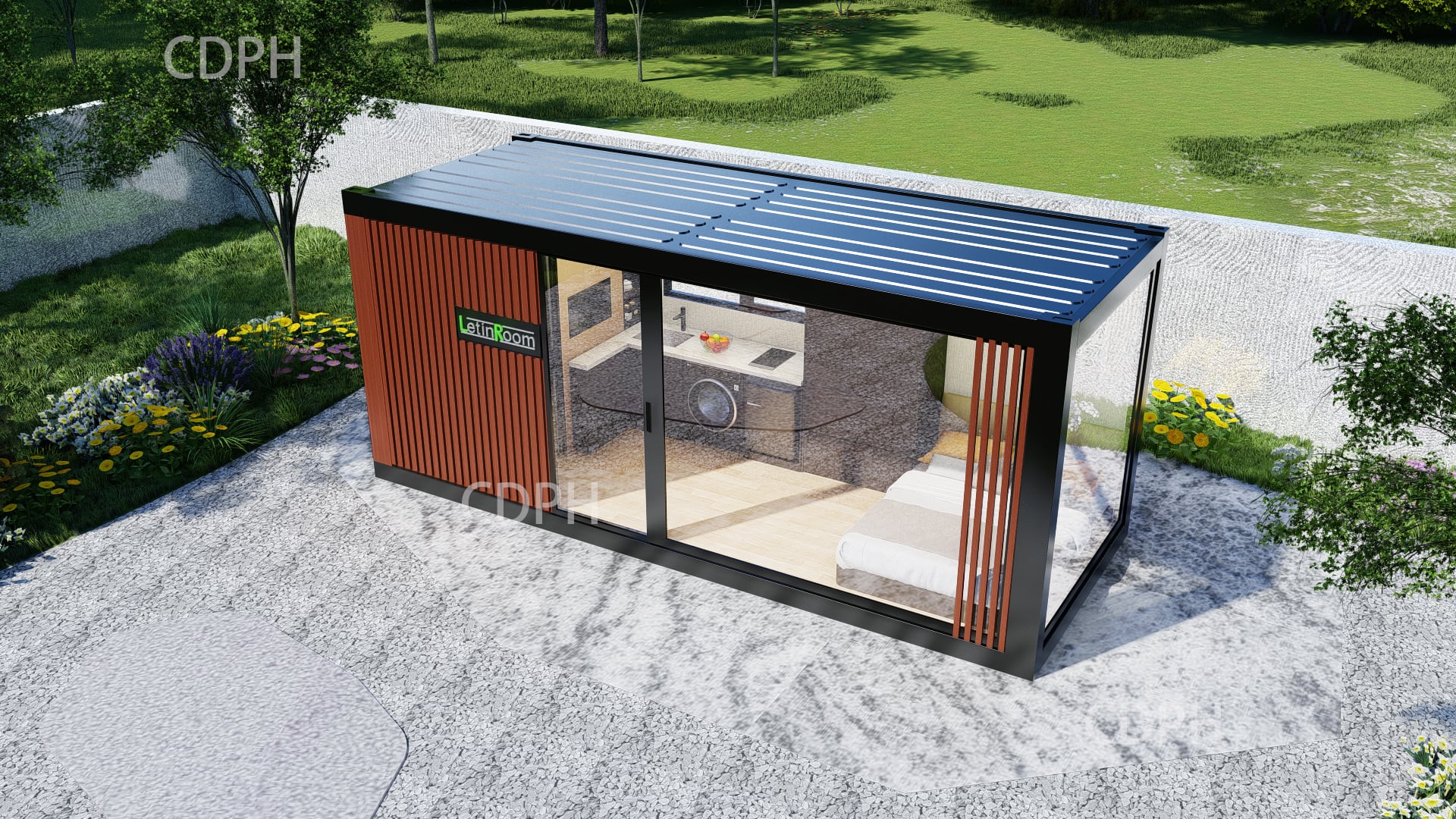

Full welded steel roof plate with dual-pitch drainage solution

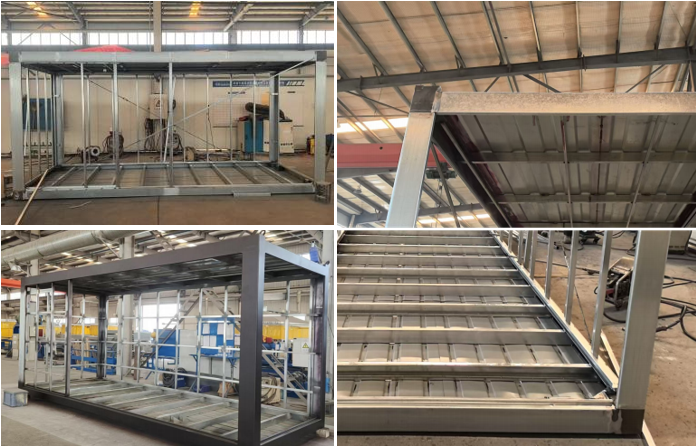

3.0mm thick galvanized SGH340 steel main structure, with 80μm protection paint coating

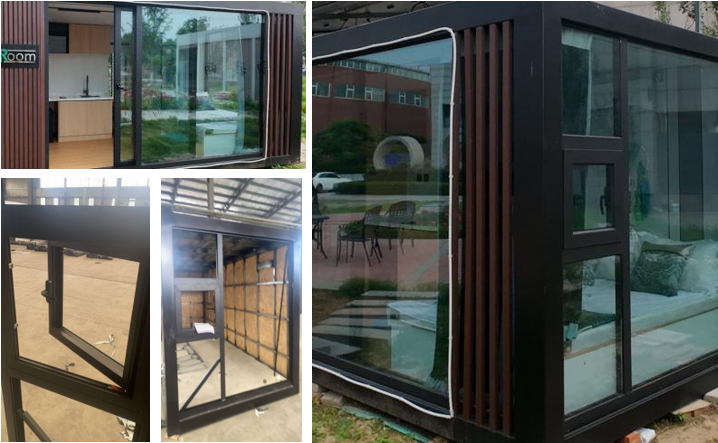

1.4mm thick broken bridge aluminum frame, with 6+20+6mm double glazed Low-E glass

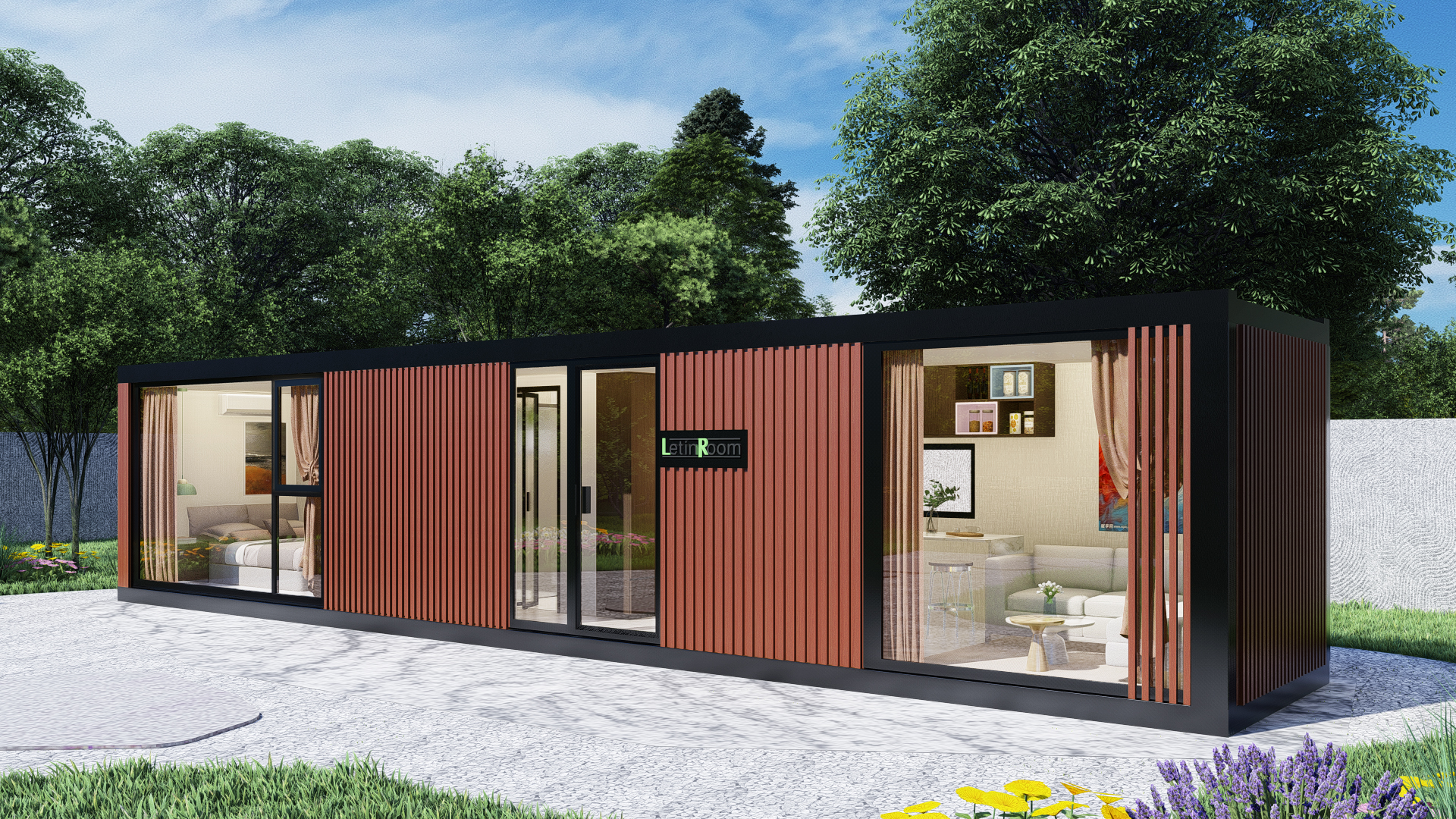

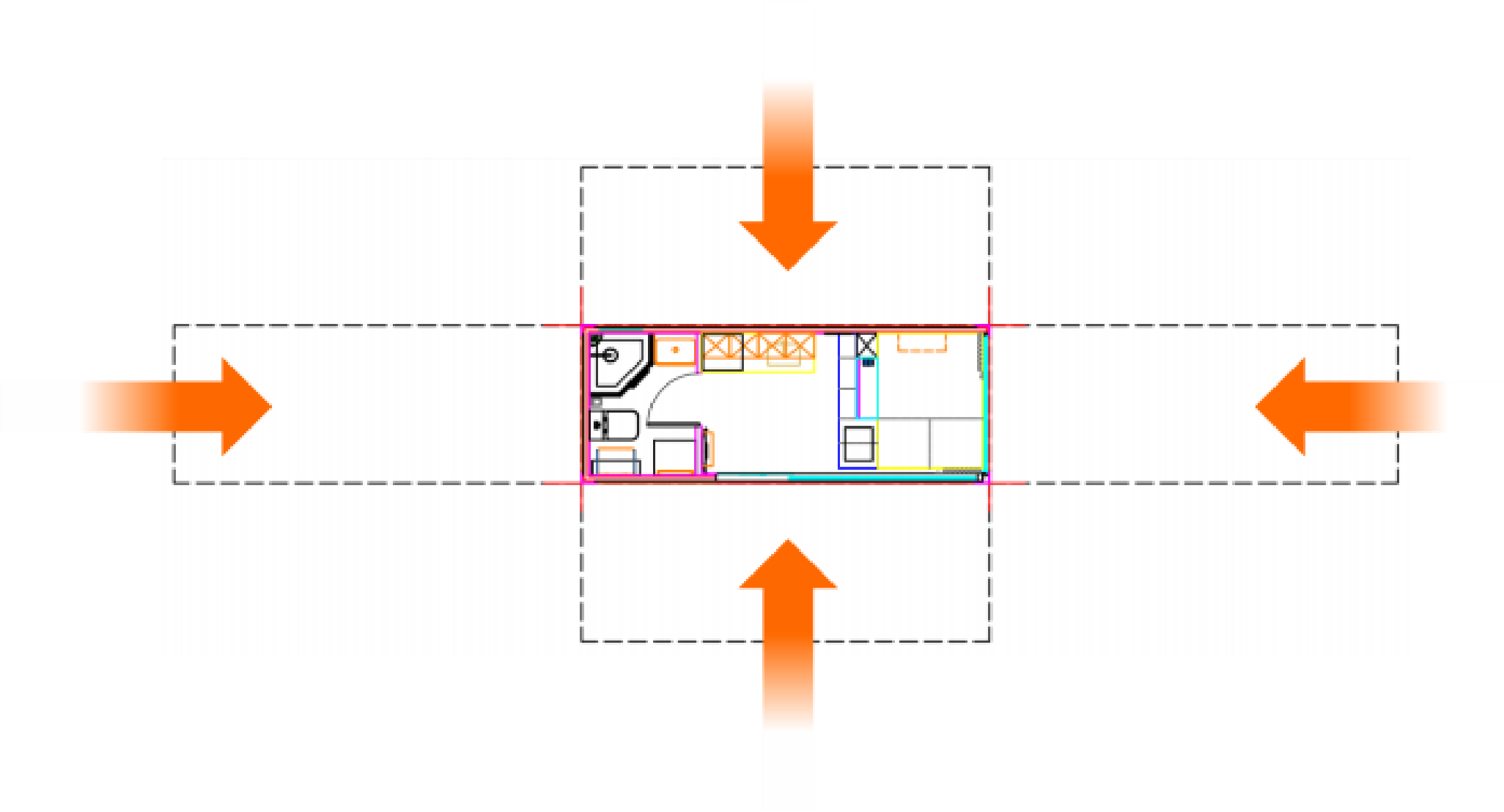

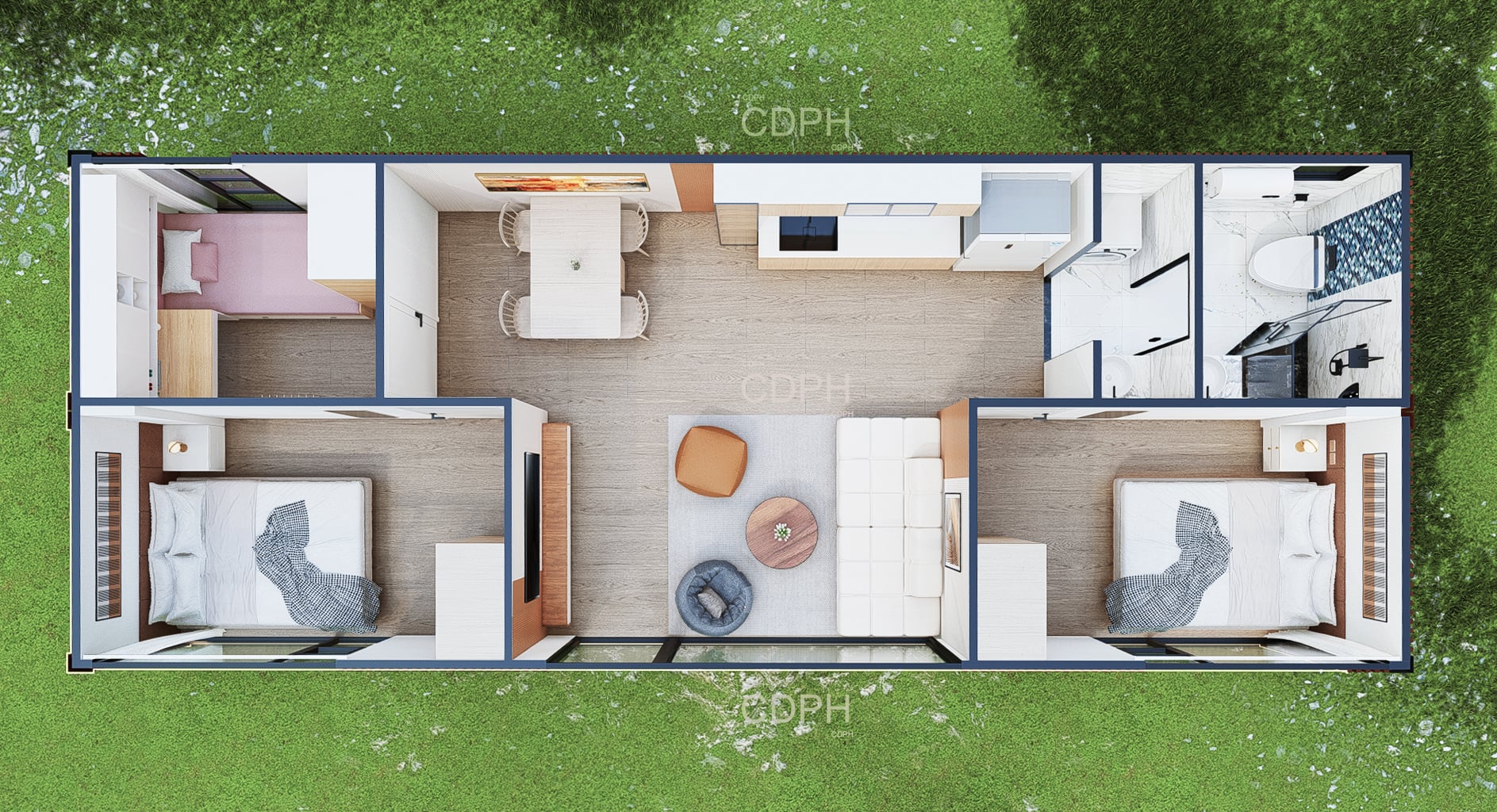

The rectangular design allows module connection from all 4 directions to further expand the building land size, breaking down the limitation of layout designing

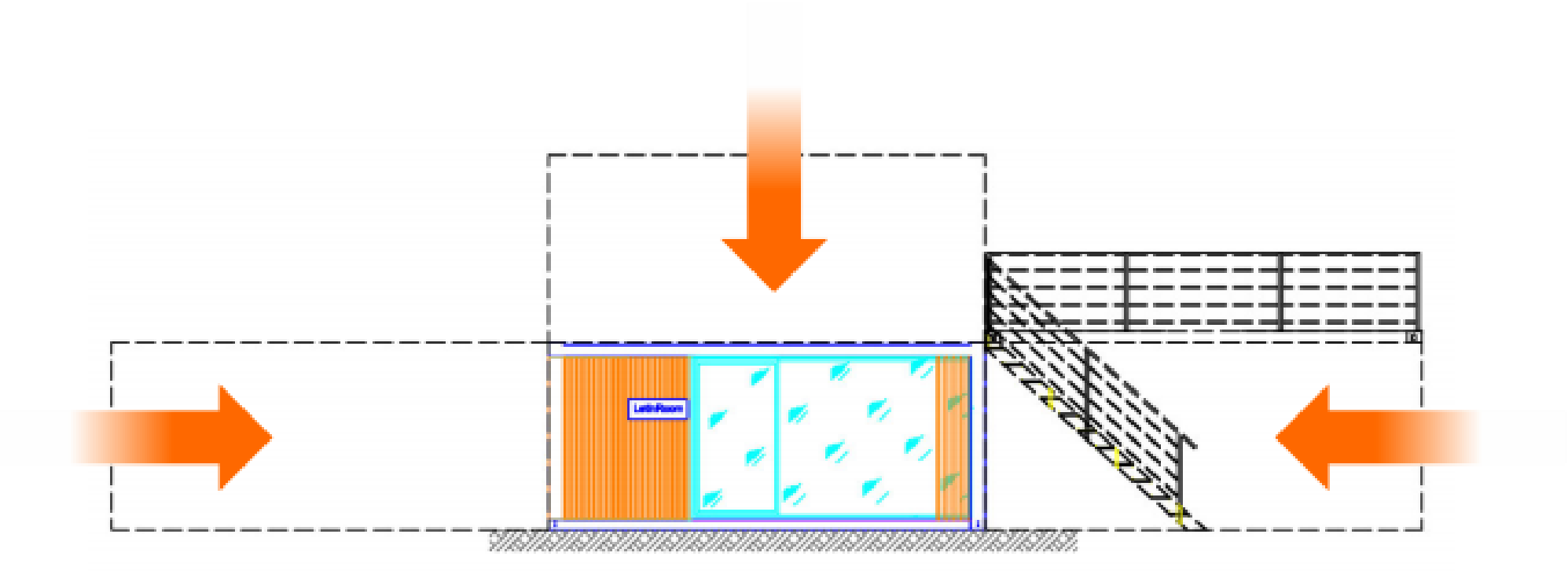

Just like our classic modular houses, in vertical aspect the modules have potential to be stacked up to maximum 3 storeys connected by outdoor stairs
| Profile | Roof Type | Full welded steel roof plate with dual-pitch drainage solution |
| Parameters | Floor loading | 2.0KN/m² |
| Roof loading | 1.0KN/m² | |
| Wind Loading | 0.5KN/m² | |
| Frame | Corner Column | Size: L210*150mm, galvanized plate, t=3.0mm, steel profile SGH340 |
| Roof Main Beam | Size: 185mm, galvanized plate, t=3.0mm, steel profile SGH340 | |
| Floor Main Beam | Size: 140mm, galvanized plate, t=3.0mm, steel profile SGH340 | |
| Roof Second Beam | Size: □80402.0mm, steel profile Q195B | |
| Floor Second Beam | Q345 type high strength, C100501.5mm profile, Q195B square tube 100501.4mm | |
| Coating | paint spraying, coating thickness 80μm, black color. (One corner column is rosewood color) | |
| Roof Decoration | Roof Sheet | 1.5mm thickness, welded steel plate, black color |
| Insulation | 100mm thickness glass wool, one surface with aluminum film, density≥14kg/m³ | |
| Baseplate | OSB boards, OSB3 grade for bathroom and OSB2 grade for living room | |
| Ceiling | Bamboo fiber boards for living room, SPC board for bathroom | |
| Floor Decoration | Floor Decoration | SPC flooring plates, SA8014, size 12201844mm |
| Baseplate | 18mm cement fiber boards, density is not less than 1.3g/cm³ | |
| Insulation | 100mm thickness glass wool, one surface with aluminum film, density≥14kg/m³ | |
| Soleplate | 0.5mm corrugated boards | |
| Wall Panel | Bedroom wall panel | 113mm rear wall thickness, WPC decoration + OSB board + steel structure with 100mm glass wool insulation + OSB board + bamboo fiber boards |
| Bathroom wall panel | 112mm wall thickness, WPC decoration + OSB board + steel structure with 100mm glass wool insulation + cement fiber boards + SPC boards | |
| Partition | 75mm partition wall thickness, bamboo fiber boards + OSB board + steel structure with 50mm glass wool insulation + cement fiber boards + SPC plate |
