Modular houses are mobile and reusable building products. They are constructed by prefabricating standardized modules in a factory and then transporting them to the site for rapid assembly. The modular house structure uses standard components welded from special steel profiles, with the modules connected by bolts. Its robust structure and convenient, quick installation have made it popular among many users.
Application areas: Engineering camps, commercial buildings, emergency response facilities, educational facilities, military, etc.
In modular housing construction, the number of floors involves multiple aspects, including structural stability, load distribution, design specifications, and safety requirements. Depending on the purpose and budget requirements, single-story, double-story, three-story, and higher-story buildings can be designed.

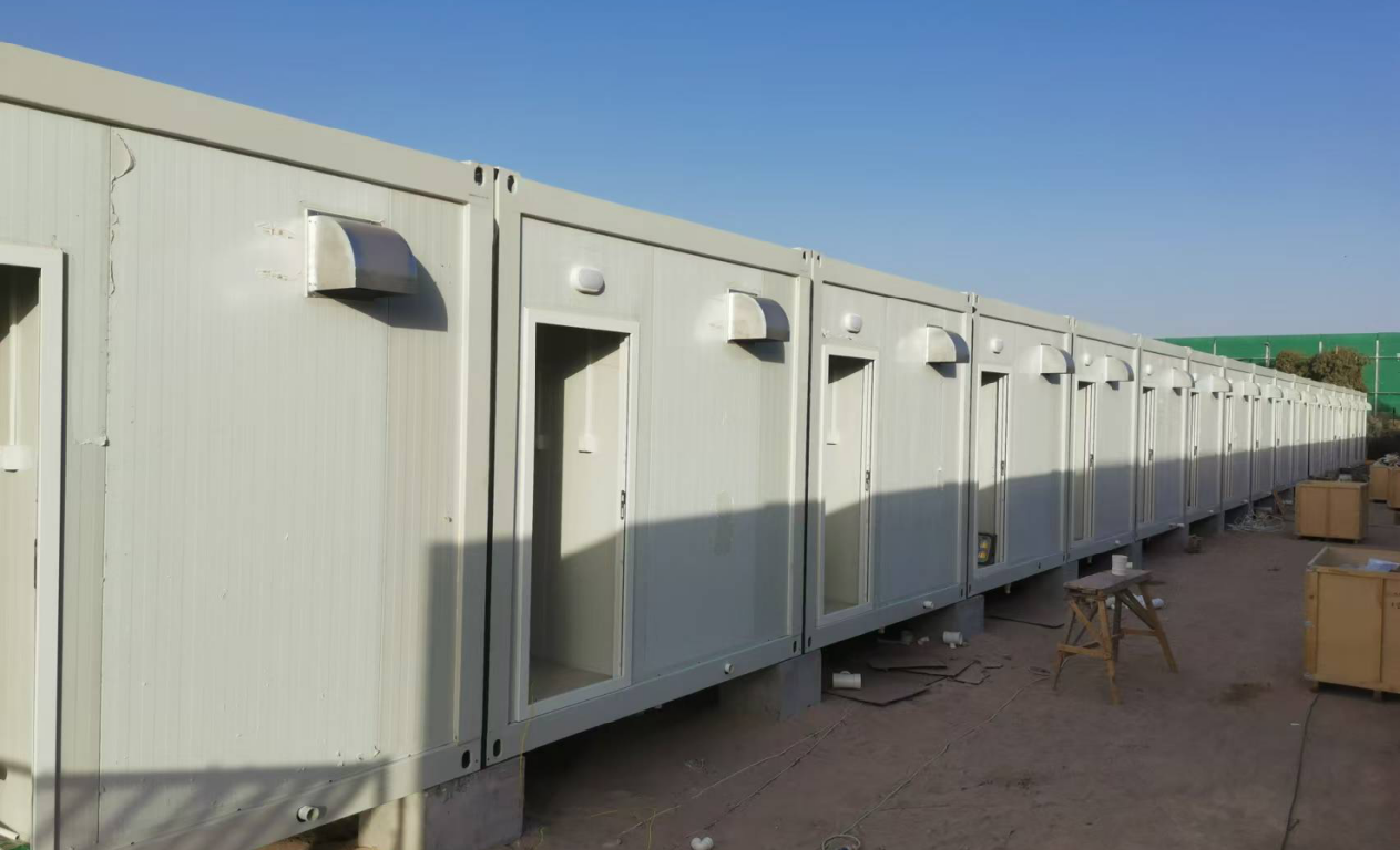

One Floor

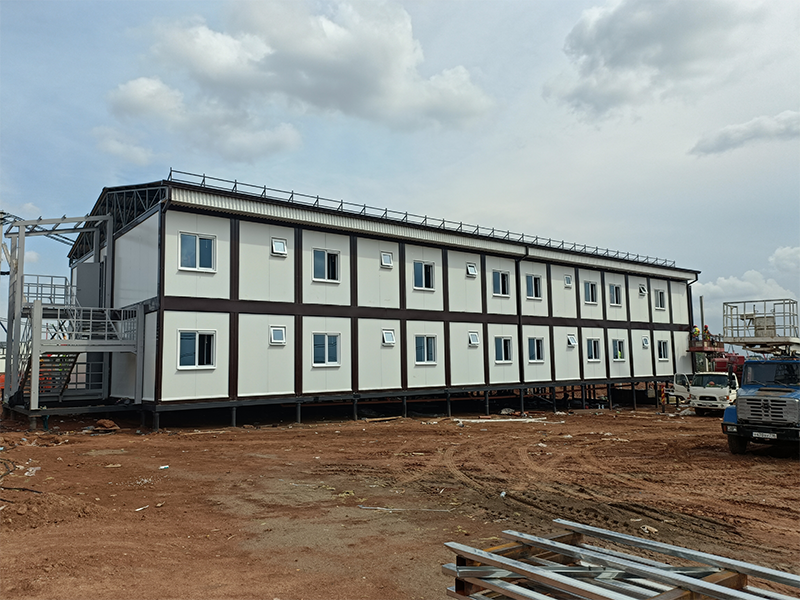

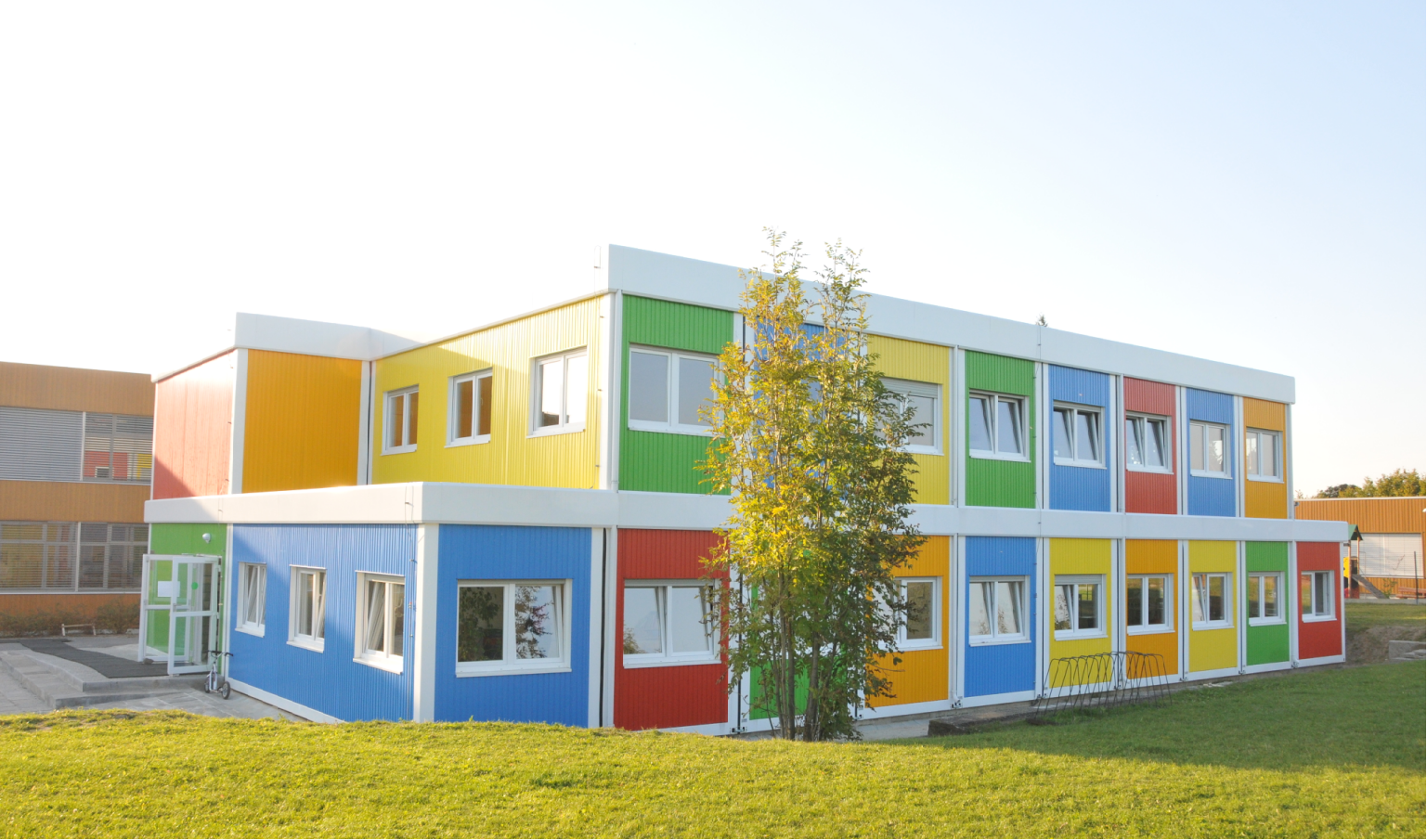

Two Floors

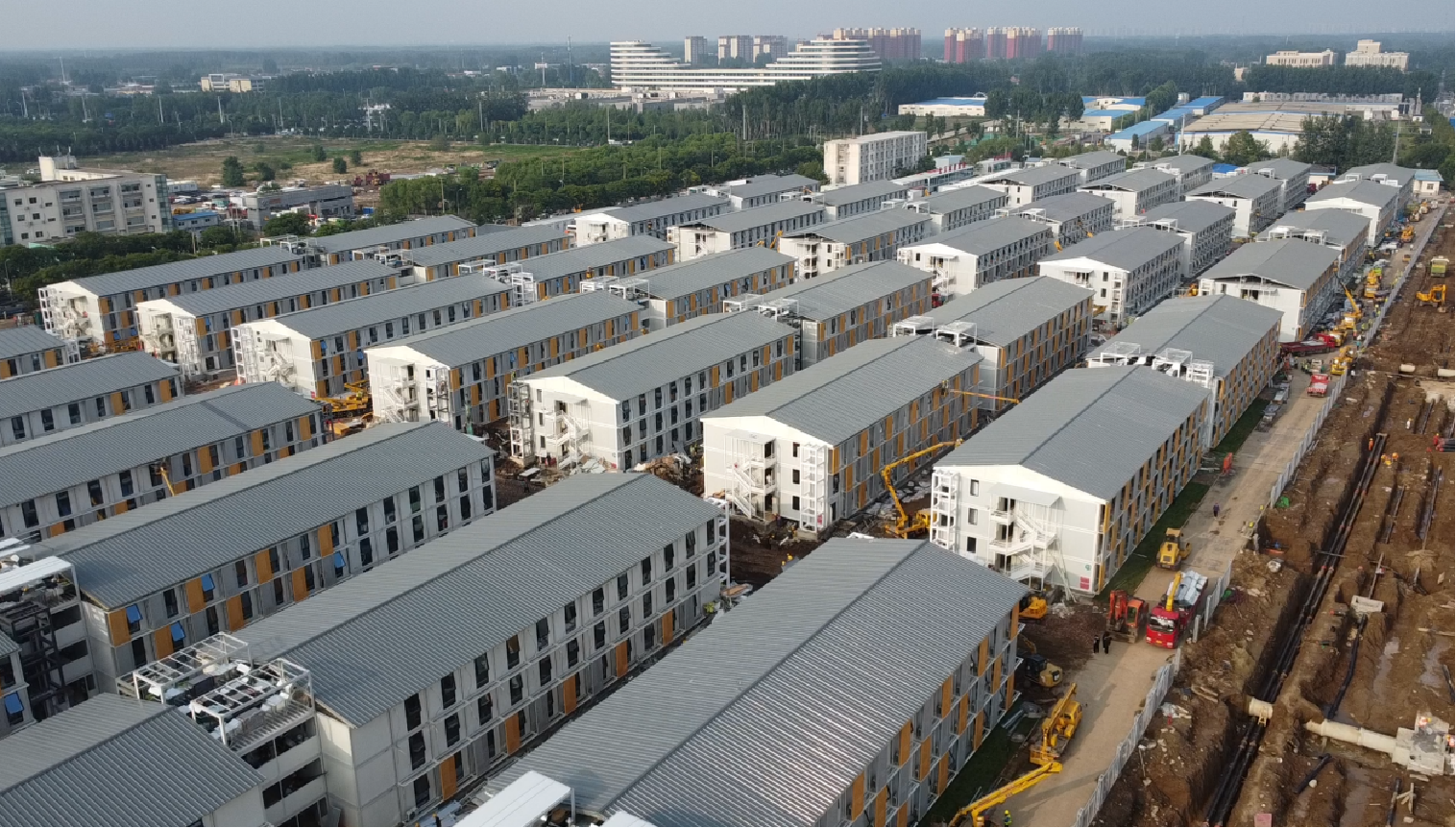

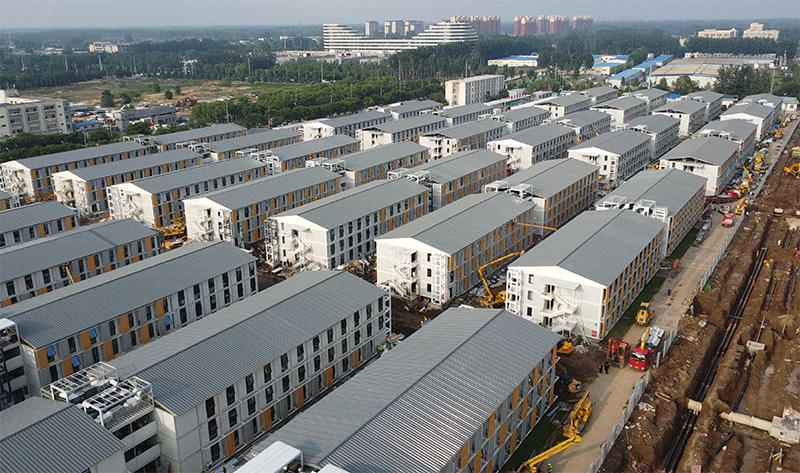

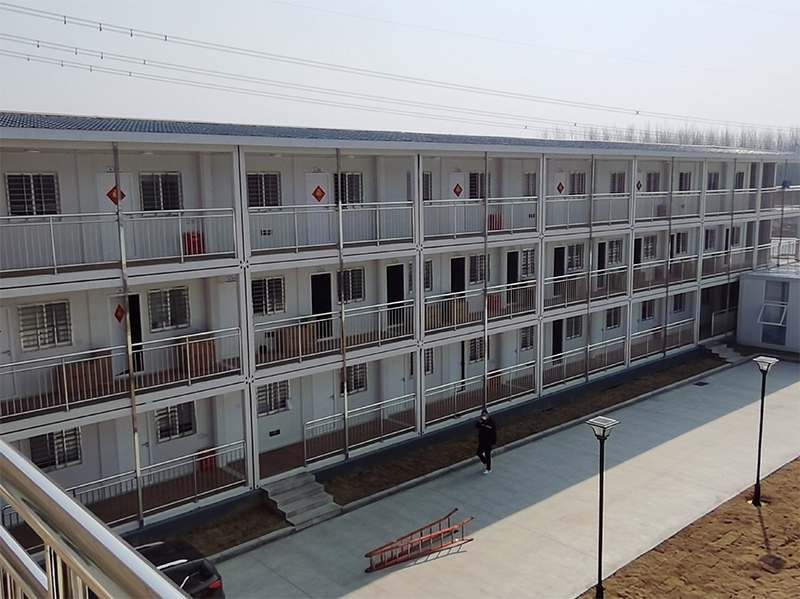

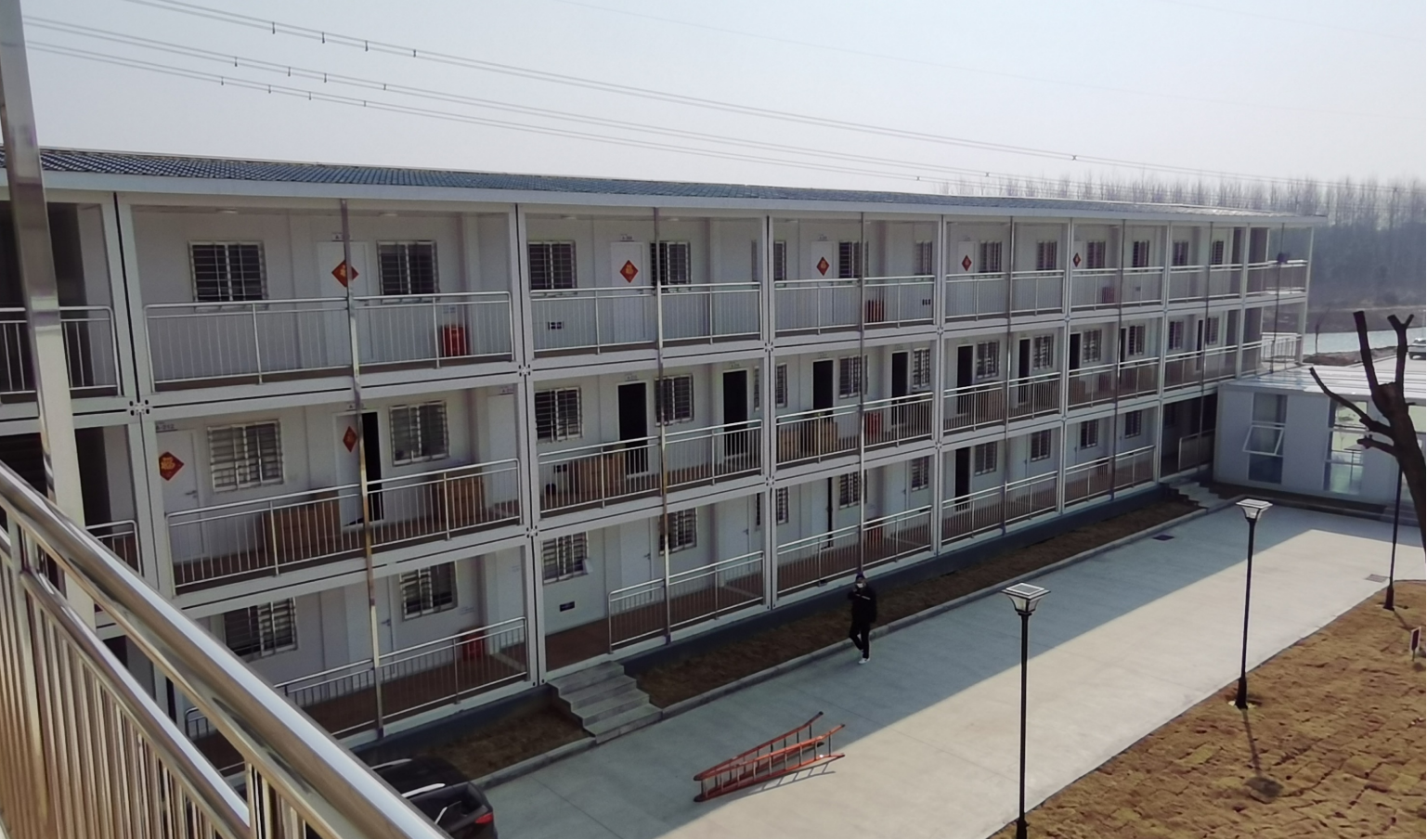

Three Floors and Above
Modular housing design follows the principle of "fewer specifications, more combinations" based on modular coordination, and should also take into account architectural diversity and economy. Practical applications primarily use "I" type, "U" type, "L" type, and "U" type designs.

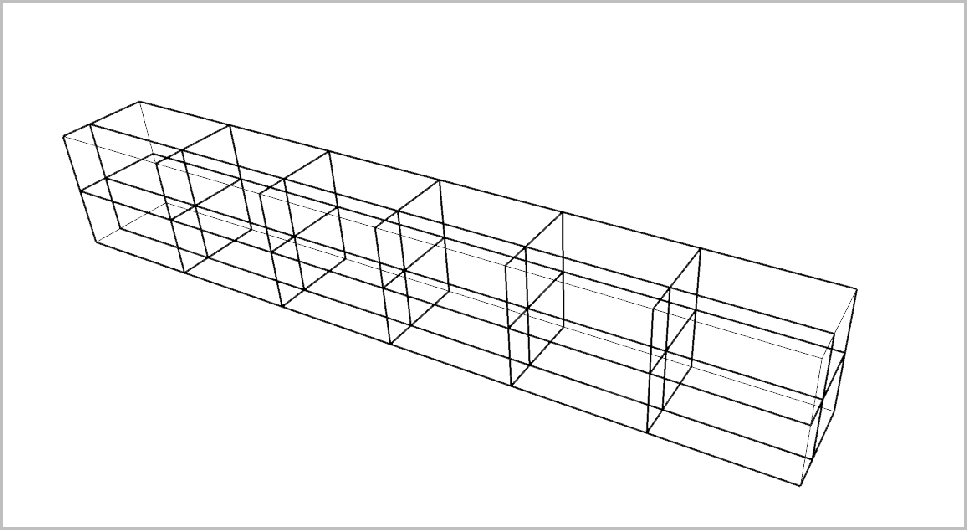

"一" type

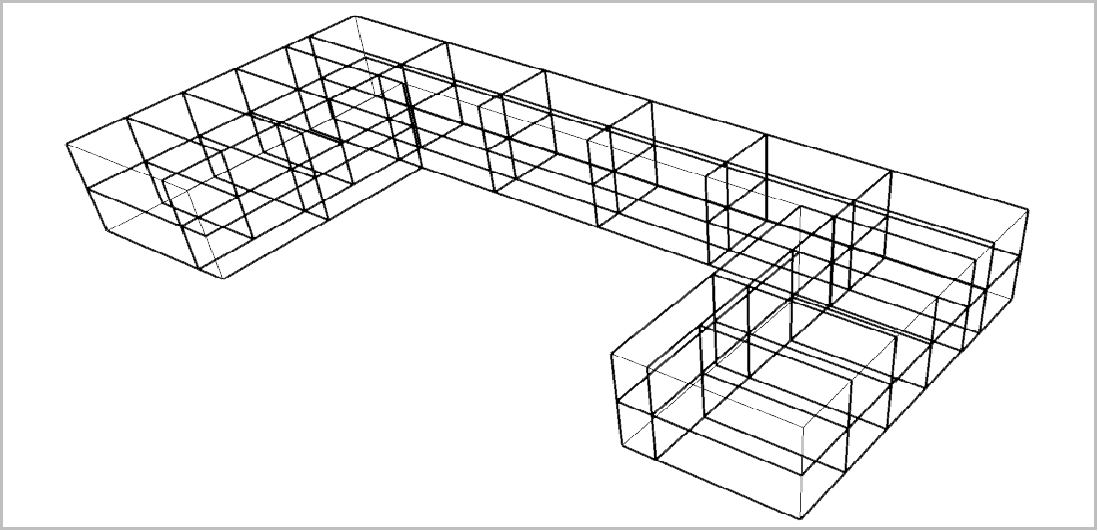

"U" type

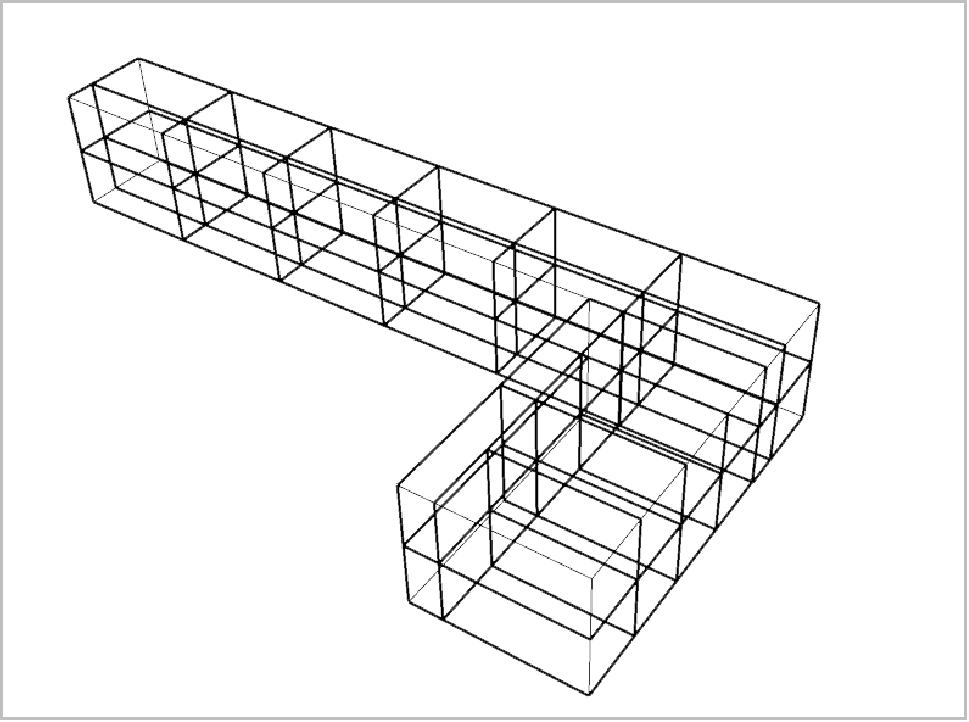

"L" type

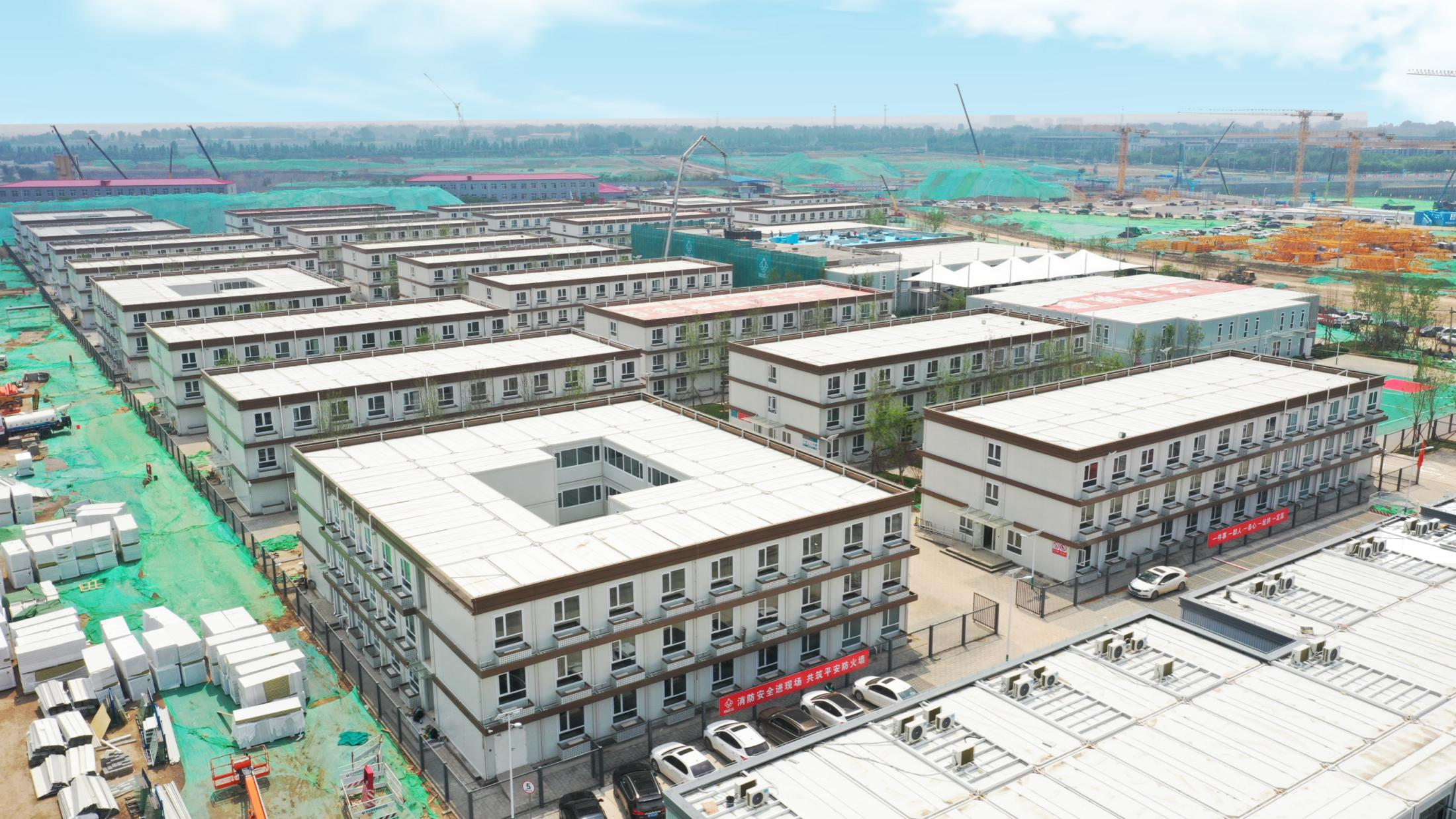

"回" type
| Product Specifications: | 6055*2990*2896（inside5845*2780*2500）mm 6055*2435*2896（inside5845*2225*2520）mm |
| Design parameters: | Roof live load: 1.0 kN/m² , 0.5KN/㎡ Ground live load: 2.0 kN/m² Wind load: 0.6 kN/m² , 0.5KN/㎡ |
| Frame structure: | galvanized cold-rolled steel, t=3.0mm, material SGH340, prefabricated in the factory. |
| Building insulation: | Roof insulation: 100mm glass wool; Floor insulation: 100mm glass wool |
| Ceiling: | Color steel ceiling |
| Flooring: | 1.5mm thick rubber and plastic flooring 1.6mm thick rubber and plastic flooring |
| Walls: | 75mm thick color steel sandwich panels, seamless S-shaped rock wool composite panels |
| Door: | Steel door |
| Window: | Integrated PVC sliding window, equipped with security bars and screen. |
| Electrical: | Prefabricated circuitry on the roof |
| Water supply: | laid along the wall |
| Drainage: | Wall-side drainage |
Municipal projects

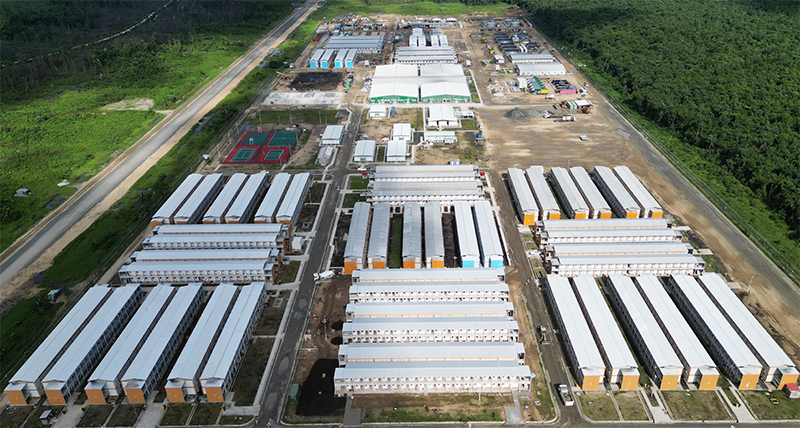

Engineering Camp

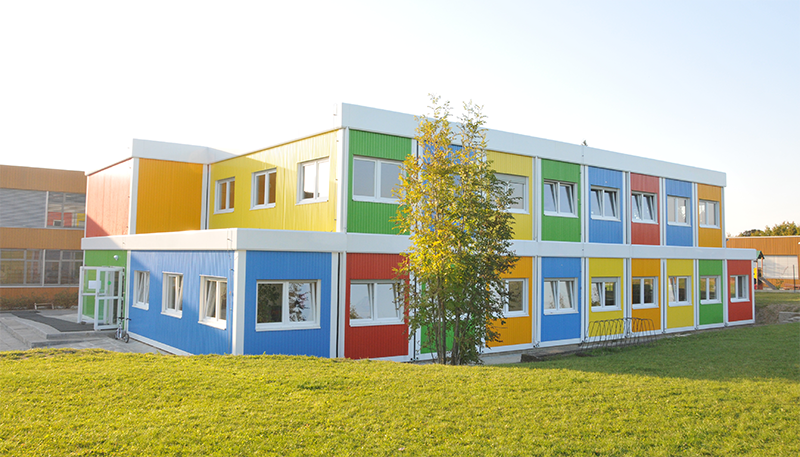

Educate

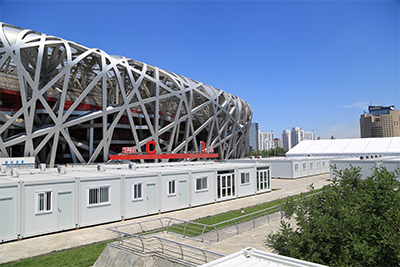

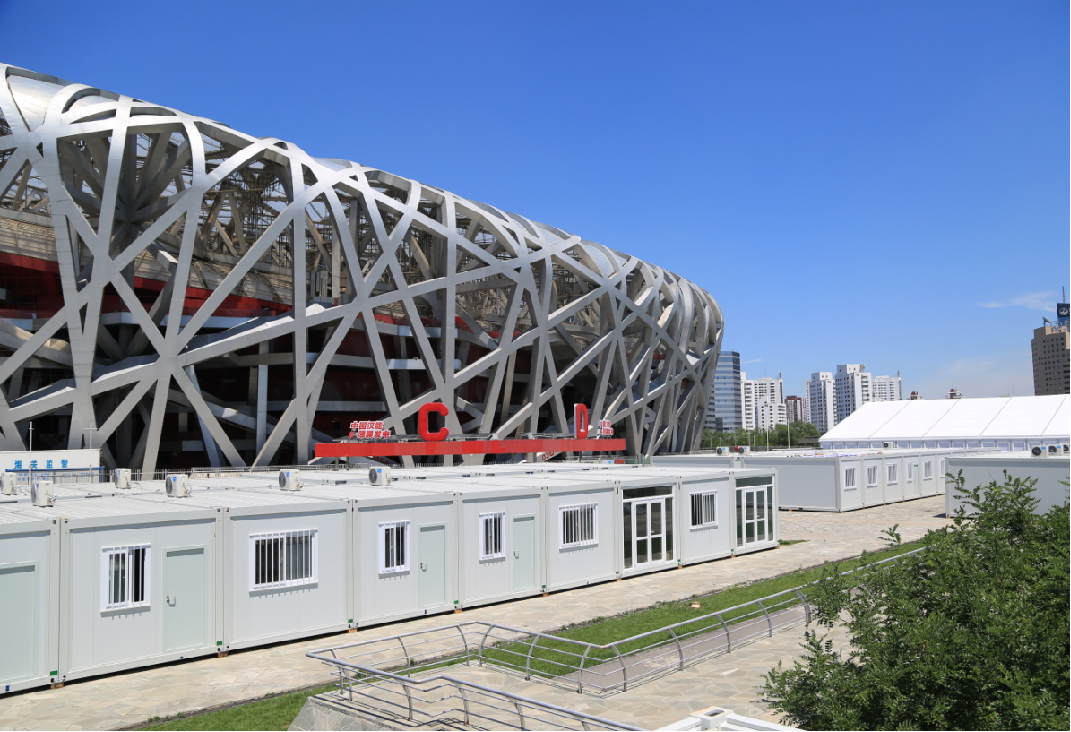

Sports Events

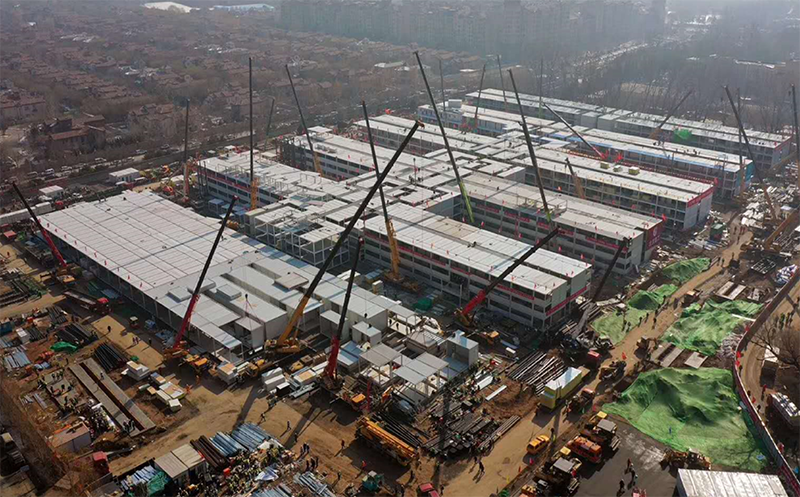

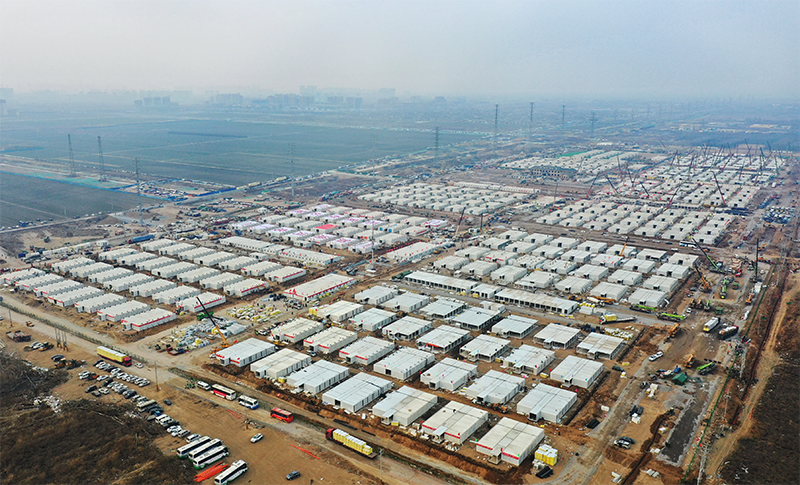

Emergency/Rescue
